Illumination System 400KG Clean Bench Stainless Steel Cleanroom Bench For Pharmaceutical
  • Illumination System 400KG Clean Bench Stainless Steel Cleanroom Bench For Pharmaceutical
  • Illumination System 400KG Clean Bench Stainless Steel Cleanroom Bench For Pharmaceutical
  • Illumination System 400KG Clean Bench Stainless Steel Cleanroom Bench For Pharmaceutical
  • Illumination System 400KG Clean Bench Stainless Steel Cleanroom Bench For Pharmaceutical
  • Illumination System 400KG Clean Bench Stainless Steel Cleanroom Bench For Pharmaceutical
  • Illumination System 400KG Clean Bench Stainless Steel Cleanroom Bench For Pharmaceutical

Illumination System 400KG Clean Bench Stainless Steel Cleanroom Bench For Pharmaceutical

Brand Name Tianjia
Certification CE/ISO/GMP
Product Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Construction Works , Energy & Mining, Food & Beverage Shops, Other
Showroom Location:
Egypt, Philippines, Chile
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Warranty Of Core Components:
1 Year
Core Components:
PLC, Motor
Condition:
New
Voltage:
AC220V/AC380V
Power:
220V/380V
Weight:
400 KG
Warranty:
1 Year
Product Name:
Clean Workbench
Type:
Customizable
Application:
100 Lab / Laboratory Clean Room
Function:
Laminar Air Flow System
Keyword:
Cleanliness
Material:
Stainless Steel 304
Size:
Customized Size
HEPA Filter:
HEPA Filter
Key Words:
CLEANER
Highlight:

Illumination System Clean Bench

,

400KG Clean Bench

,

stainless steel cleanroom bench for Pharmaceutical

Payment & Shipping Terms
Minimum Order Quantity
1Pcs
Packaging Details
Wooden Box
Delivery Time
20days
Payment Terms
T/T, L/C
Product Description

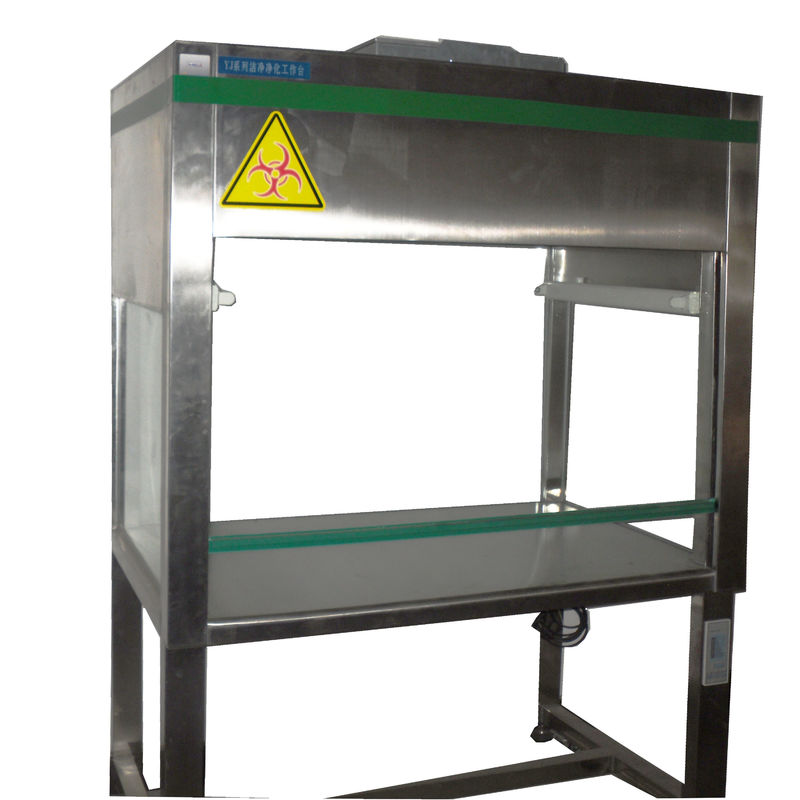

Stainless Steel Clean Bench with Illumination System for Pharmaceutical Production



Cleanroom Clean Workbench
Illumination System 400KG Clean Bench Stainless Steel Cleanroom Bench For Pharmaceutical 0

Illumination System 400KG Clean Bench Stainless Steel Cleanroom Bench For Pharmaceutical 1

Illumination System 400KG Clean Bench Stainless Steel Cleanroom Bench For Pharmaceutical 2

Illumination System 400KG Clean Bench Stainless Steel Cleanroom Bench For Pharmaceutical 3



Specification:

Model SW-CJ-1C SW-CJ-2C
clean class Grade 100 (ISO Level 5)
clump count ≤0.5 PCS/dish * (ø 90mm petri dish)
average wind velocity 0.3~0.6m/s (adjustable)
vibration ≤4um (xyz direction)
dB(A) ≤62dB ≤65dB
illuminance ≥300LX
maximum power consumption ≤400W ≤800W
power supply 220 v / 50 hz AC single phase
Weight ~100kg ~150kg

Overall dimensions

D * W * H (mm)

900*720*1450 1500*720*1450

Work area dimensions

D * W * H (mm)

850*600*500 1450*480*600
Hepa filter specification 820*600*500 820*600*500 600*600*500
Fluorescent lamp/UV lamp 14W, 14W 14W,14W
of operator Single Double


Product Features:

1. Advanced Filtration System: The clean workbench is equipped with a high-efficiency filtration system that can effectively remove particles, microorganisms, and contaminants from the air, ensuring a clean and sterile working environment.
2. Adjustable Airflow: The airflow within the workbench can be precisely adjusted to meet the specific requirements of different operations, maintaining a stable and uniform air flow field.
3. Stainless Steel Construction: Made of high-quality stainless steel, the workbench is corrosion-resistant, easy to clean, and has a long service life.
4. Ergonomic Design: The design of the workbench takes into account the ergonomic needs of the operator, providing a comfortable working position and convenient operation interface.
5. Illumination System: Equipped with a bright and uniform illumination system to ensure clear visibility during operations.

Applications:

1. Biomedical Research: It is widely used in laboratories for cell culture, microbiological experiments, and drug research and development.
2. Electronics Manufacturing: In the electronics industry, it helps in the assembly and testing of sensitive electronic components to prevent contamination.
3. Pharmaceutical Production: It plays a crucial role in the manufacturing of drugs, guaranteeing the purity and quality of the products.
4. Food Processing: Ensures the hygiene and safety of food processing by providing a clean environment.

Advantages:

1. Improved Product Quality: By minimizing contamination, it helps to enhance the quality and reliability of the products produced or researched.
2. Protection of Operators: Reduces the risk of operators being exposed to harmful substances and microorganisms, safeguarding their health.
3. Cost-Effective: Long-term use can lead to reduced product rejects and increased productivity, resulting in overall cost savings.
4. Customizable: Can be tailored to meet the specific needs and requirements of different industries and applications.
