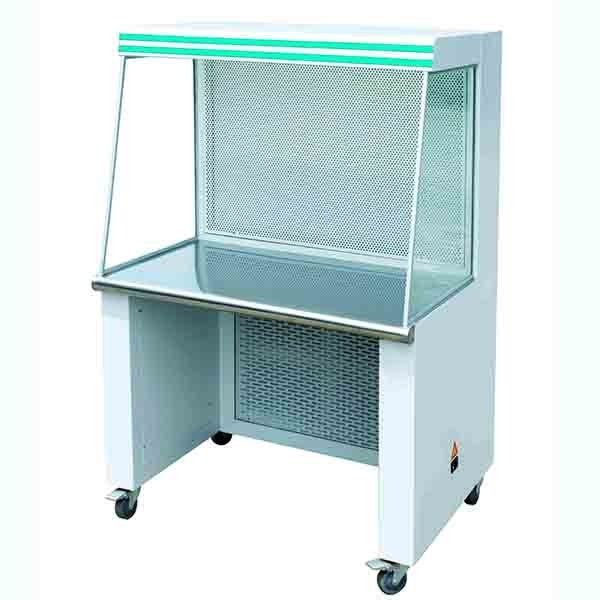

Horizontal Manifold Flow Laf Clean Bench 50dB Cleanroom Laminar Air Flow Bench
  • Horizontal Manifold Flow Laf  Clean Bench 50dB Cleanroom Laminar Air Flow Bench
  • Horizontal Manifold Flow Laf  Clean Bench 50dB Cleanroom Laminar Air Flow Bench
  • Horizontal Manifold Flow Laf  Clean Bench 50dB Cleanroom Laminar Air Flow Bench
  • Horizontal Manifold Flow Laf  Clean Bench 50dB Cleanroom Laminar Air Flow Bench

Horizontal Manifold Flow Laf Clean Bench 50dB Cleanroom Laminar Air Flow Bench

Place of Origin Ying Cheng,Hubei, China
Brand Name Tianjia
Product Details
After-sales Service Provided:
Online Support
Warranty:
1 Year
Application:
100 Lab / Laboratory Clean Room,laboratory,Chemical Lab,Biology,Chemical Lab/Cleanroom
Noise:
50dB
Product Name:
Clean Bench
Material:
Stainless Steel
Power:
220V/50Hz
Size:
Customized Size
Type:
Horizontal Airflow,Vertical Ventilation
Name:
Laminar Flow Cabinet
Cleanliness:
Class 100
Certification:
ISO 9001
Usage:
High Cleanliness
Highlight:

Horizontal Clean Bench

,

Manifold laf bench

,

50dB Cleanroom laminar air flow bench

Payment & Shipping Terms
Minimum Order Quantity
1Pcs
Packaging Details
Wooden Box
Delivery Time
20days
Payment Terms
T/T
Product Description

Horizontal Manifold Flow Clean Bench For Cleanroom



Cleanroom Clean Workbench
Horizontal Manifold Flow Laf  Clean Bench 50dB Cleanroom Laminar Air Flow Bench 0

Horizontal Manifold Flow Laf  Clean Bench 50dB Cleanroom Laminar Air Flow Bench 1

Horizontal Manifold Flow Laf  Clean Bench 50dB Cleanroom Laminar Air Flow Bench 2



Specification:



Model SW-CJ-1C SW-CJ-2C
clean class Grade 100 (ISO Level 5)
clump count ≤0.5 PCS/dish * (ø 90mm petri dish)
average wind velocity 0.3~0.6m/s (adjustable)
vibration ≤4um (xyz direction)
dB(A) ≤62dB ≤65dB
illuminance ≥300LX
maximum power consumption ≤400W ≤800W
power supply 220 v / 50 hz AC single phase
Weight ~100kg ~150kg

Overall dimensions

D * W * H (mm)

900*720*1450 1500*720*1450

Work area dimensions

D * W * H (mm)

850*600*500 1450*480*600
Hepa filter specification 820*600*500 820*600*500 600*600*500
Fluorescent lamp/UV lamp 14W, 14W 14W,14W
of operator Single Double

Product Features:

1. Advanced Filtration System: The clean workbench is equipped with a high-efficiency filtration system that can effectively remove particles, microorganisms, and contaminants from the air, ensuring a clean and sterile working environment.
2. Adjustable Airflow: The airflow within the workbench can be precisely adjusted to meet the specific requirements of different operations, maintaining a stable and uniform air flow field.
3. Stainless Steel Construction: Made of high-quality stainless steel, the workbench is corrosion-resistant, easy to clean, and has a long service life.
4. Ergonomic Design: The design of the workbench takes into account the ergonomic needs of the operator, providing a comfortable working position and convenient operation interface.
5. Illumination System: Equipped with a bright and uniform illumination system to ensure clear visibility during operations.

Applications:

1. Biomedical Research: It is widely used in laboratories for cell culture, microbiological experiments, and drug research and development.
2. Electronics Manufacturing: In the electronics industry, it helps in the assembly and testing of sensitive electronic components to prevent contamination.
3. Pharmaceutical Production: It plays a crucial role in the manufacturing of drugs, guaranteeing the purity and quality of the products.
4. Food Processing: Ensures the hygiene and safety of food processing by providing a clean environment.

Advantages:

1. Improved Product Quality: By minimizing contamination, it helps to enhance the quality and reliability of the products produced or researched.
2. Protection of Operators: Reduces the risk of operators being exposed to harmful substances and microorganisms, safeguarding their health.
3. Cost-Effective: Long-term use can lead to reduced product rejects and increased productivity, resulting in overall cost savings.
4. Customizable: Can be tailored to meet the specific needs and requirements of different industries and applications.
