Specification:
Model | TD-AS/AL-①L | TD-AS/AL-②L | TD-AS/AL-③L | TD-AS/AL-④L |
Filter Efficiency | ≥99.99%(@≥0.3μm) | |||
Air Velocity | ≥20 m/s(4920fpm) | |||
Showering Time | 0~99 s (Adjustable) | |||
Num.of Nozzle | 18 pcs | 36 pcs | 54 pcs | 72 pcs |
Power Supply | AC380V, 3Φ, 50Hz | |||
Rated Power | 1100 w | 2200w | 3300w | 4400w |
Body | High grade steel with ivory color static powder coating | |||
Floor | Stainless steel bottom plate | |||
Door | Aluminum alloy with tempered glass | |||
Overall Dim.(WXDXH) | 1500*1000*2150 mm | 1500*2000*2150 mm | 1500*3000*2150 mm | 1500*4000*2150 mm |
Dim. Of Showering Area(W1XD1XH1) | 800*900*2000 mm | 800*1900*2000 mm | 800*2900*2000 mm | 800*3900*2000 mm |
Weight | 500 kg | 1000kg | 1500kg | 2000kg |
Features:
1. Advanced Filtration System: The air shower is equipped with high-efficiency filters that can effectively remove dust, particles, and microorganisms from the air, ensuring a clean and sterile environment.
2. Strong Airflow: It generates a powerful and uniform airflow to blow off contaminants from the surface of personnel or objects entering the cleanroom.
3. Intelligent Control System: The air shower is controlled by an intelligent system that allows for customizable settings such as air velocity, shower time, and interlocking functions with other cleanroom equipment.
4. Durable Construction: Made of high-quality stainless steel or other corrosion-resistant materials, it is designed to withstand the harsh conditions of a cleanroom environment and has a long service life.
5. Ergonomic Design: The design takes into account the comfort and convenience of users, with spacious interiors and easy-to-operate control panels.
Applications:
1. Electronics Industry: Air showers are widely used in semiconductor manufacturing, printed circuit board assembly, and other electronic component production processes to prevent the introduction of contaminants that could affect product quality.
2. Pharmaceutical Industry: They are essential in drug manufacturing facilities to maintain aseptic conditions and prevent cross-contamination.
3. Food Industry: In food processing plants, air showers help keep the production area clean and free from contaminants that could compromise food safety.
4. Biomedical Research: Laboratories conducting biomedical research rely on air showers to protect sensitive experiments and samples from external contaminants.
Advantages:
1. Improved Cleanliness: By removing contaminants from personnel and objects, it significantly reduces the risk of contamination in the cleanroom, improving the overall cleanliness level.
2. Enhanced Product Quality: Helps to ensure the quality and reliability of products manufactured in cleanroom environments, especially in industries where precision and purity are crucial.
3. Cost-Effective: Compared to other contamination control measures, air showers offer a cost-effective solution for maintaining cleanroom standards.
4. Increased Efficiency: The quick and efficient decontamination process enables smooth workflow and reduces downtime.
5. Compliance with Standards: Helps facilities comply with strict industry standards and regulations regarding cleanliness and contamination control.

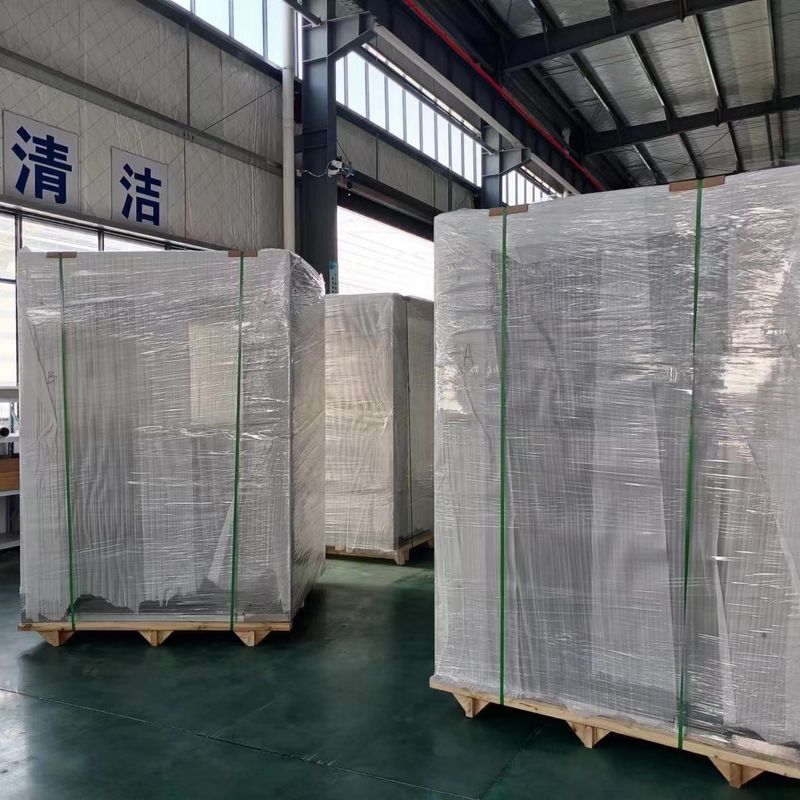

Packaging and Transportation:
