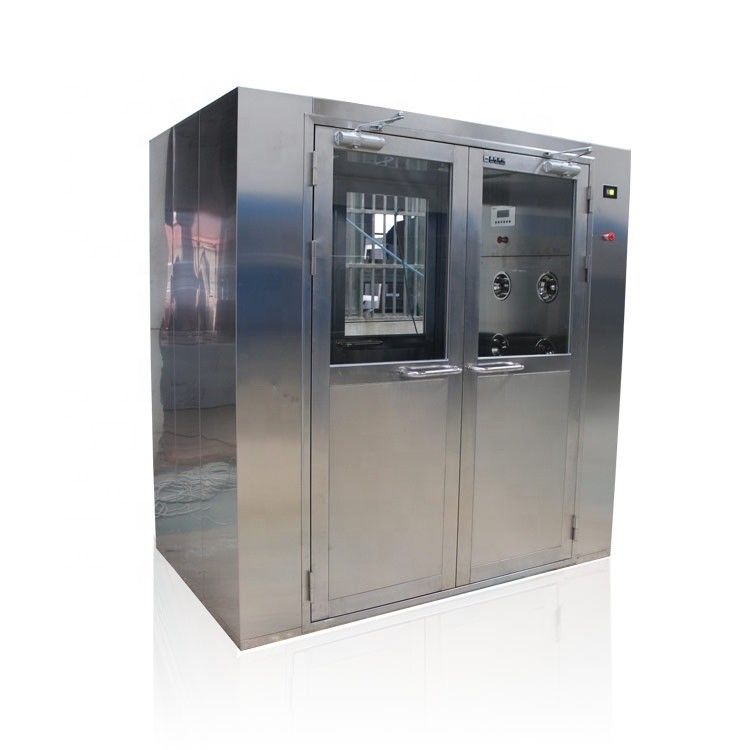

1.1KW 220V Clean Air In Shower Full Stainless Steel Double Automatic Door Air Shower Cabinet
  • 1.1KW 220V Clean Air In Shower Full Stainless Steel Double Automatic Door Air Shower Cabinet
  • 1.1KW 220V Clean Air In Shower Full Stainless Steel Double Automatic Door Air Shower Cabinet
  • 1.1KW 220V Clean Air In Shower Full Stainless Steel Double Automatic Door Air Shower Cabinet
  • 1.1KW 220V Clean Air In Shower Full Stainless Steel Double Automatic Door Air Shower Cabinet
  • 1.1KW 220V Clean Air In Shower Full Stainless Steel Double Automatic Door Air Shower Cabinet
  • 1.1KW 220V Clean Air In Shower Full Stainless Steel Double Automatic Door Air Shower Cabinet
1.1KW 220V Clean Air In Shower Full Stainless Steel Double Automatic Door Air Shower Cabinet

1.1KW 220V Clean Air In Shower Full Stainless Steel Double Automatic Door Air Shower Cabinet

Place of Origin wuhan, China
Brand Name OEM
Product Details
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Hospital, Electronics Factory, Chemical Labs
Showroom Location:
None
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Core Components:
PLC, Motor
Condition:
New
Voltage:
220V/380V (Can Be Customized)
Power:
1.1KW
Dimension(L*W*H):
Customize
Weight:
300 KG
Warranty:
12 Months
Material:
SS/SUS304
Inner Dimension(mm):
Customize
Nozzle:
Customize
Nozzle Material:
Stainless Steel
Diameter Of Nozzle Mouth:
30mm
Air Velocity At The Nozzle:
≥25m/s
Pre-filter:
Customize
HEPA Filter:
Customize
Efficiency:
≥99.995%
Shower Time:
0-99s Adjustable
Highlight:

1.1KW air in shower

,

220V air in shower system

,

Automatic Door air shower cabinet

Payment & Shipping Terms
Minimum Order Quantity
1Pcs
Price
$2,000.00/sets 1-4 sets
Packaging Details
Pack the air shower in a wooden case, then put the wooden case into a container.
Delivery Time
15 work day
Payment Terms
T/T, L/C
Supply Ability
50 Set/Sets per Month
Product Description
Clean Air Full Stainless Steel Double Automatic Door Air Shower Room
Product Overview

Full Stainless Steel Air Shower Room Customized for Clean Room with CE/GMP/ISO

CleanRoom air shower adopts pre-filter and HEPA filtration system, filtration efficiency reaches 99.995%, matched with multiple perspectives and adjustable stainless steel nozzle & big air volume low noise fan. Air velocity can reach 25m/s from air outlet and 18m/s to human body.
FEATURES AT A GLANCE
1.1KW 220V Clean Air In Shower Full Stainless Steel Double Automatic Door Air Shower Cabinet 0

PRODUCT SPECIFICATIONS






1.1KW 220V Clean Air In Shower Full Stainless Steel Double Automatic Door Air Shower Cabinet 1

1.1KW 220V Clean Air In Shower Full Stainless Steel Double Automatic Door Air Shower Cabinet 2

1.1KW 220V Clean Air In Shower Full Stainless Steel Double Automatic Door Air Shower Cabinet 3





Specification:

Model TD-AS/AL-①L TD-AS/AL-②L TD-AS/AL-③L TD-AS/AL-④L
Filter Efficiency ≥99.99%(@≥0.3μm)
Air Velocity ≥20 m/s(4920fpm)
Showering Time 0~99 s (Adjustable)
Num.of Nozzle 18 pcs 36 pcs 54 pcs 72 pcs
Power Supply AC380V, 3Φ, 50Hz
Rated Power 1100 w 2200w 3300w 4400w
Body High grade steel with ivory color static powder coating
Floor Stainless steel bottom plate
Door Aluminum alloy with tempered glass
Overall Dim.(WXDXH) 1500*1000*2150 mm 1500*2000*2150 mm 1500*3000*2150 mm 1500*4000*2150 mm
Dim. Of Showering Area(W1XD1XH1) 800*900*2000 mm 800*1900*2000 mm 800*2900*2000 mm 800*3900*2000 mm
Weight 500 kg 1000kg 1500kg 2000kg




Features:
1. High-Speed Air Jets: Equipped with powerful air blowers that generate high-speed jets of clean air to effectively remove contaminants from the surface of personnel and objects.
2. Air Filtration System: Incorporates advanced filtration systems to ensure the quality and cleanliness of the air used for the air shower.
3. Stainless Steel Construction: Commonly made of stainless steel for durability, corrosion resistance, and ease of sanitization.
4. Electronic Controls: Features intuitive electronic control panels for easy operation and adjustment of parameters such as air flow speed and duration.
5. Two-Way Air Flow: Some models have a two-way air flow design to provide thorough cleaning from all directions.
6. Illumination: Fitted with adequate lighting to ensure good visibility inside the air shower.
7. Interlocking Doors: The entry and exit doors are interlocked to prevent simultaneous opening and maintain the integrity of the cleanroom environment.

Applications:
1. Electronics Industry: To remove dust and particles from workers and materials before entering cleanrooms where electronic components are manufactured.
2. Pharmaceutical Manufacturing: For sanitizing personnel and equipment before entering production areas to maintain sterility.
3. Biotechnology and Laboratories: To ensure the cleanliness of researchers and samples before entering controlled environments.
4. Food Processing: In food production facilities to prevent the introduction of contaminants.
5. Semiconductor Fabrication: To keep the cleanroom environment pure during the production of semiconductor chips.

Advantages:
1. Enhanced Cleanliness: Significantly reduces the amount of contaminants carried into the cleanroom, improving the overall cleanliness level.
2. Protection of Products: Helps protect sensitive products from contamination, ensuring quality and reliability.
3. Disease Prevention: Minimizes the risk of cross-contamination and the spread of diseases in controlled environments.
4. User-Friendly: Simple and quick to use, causing minimal disruption to the workflow.
5. Long-Term Cost Savings: By maintaining a clean environment, it reduces the likelihood of product defects and rework, saving costs in the long run.

Packing and Transportation:
1.1KW 220V Clean Air In Shower Full Stainless Steel Double Automatic Door Air Shower Cabinet 4
